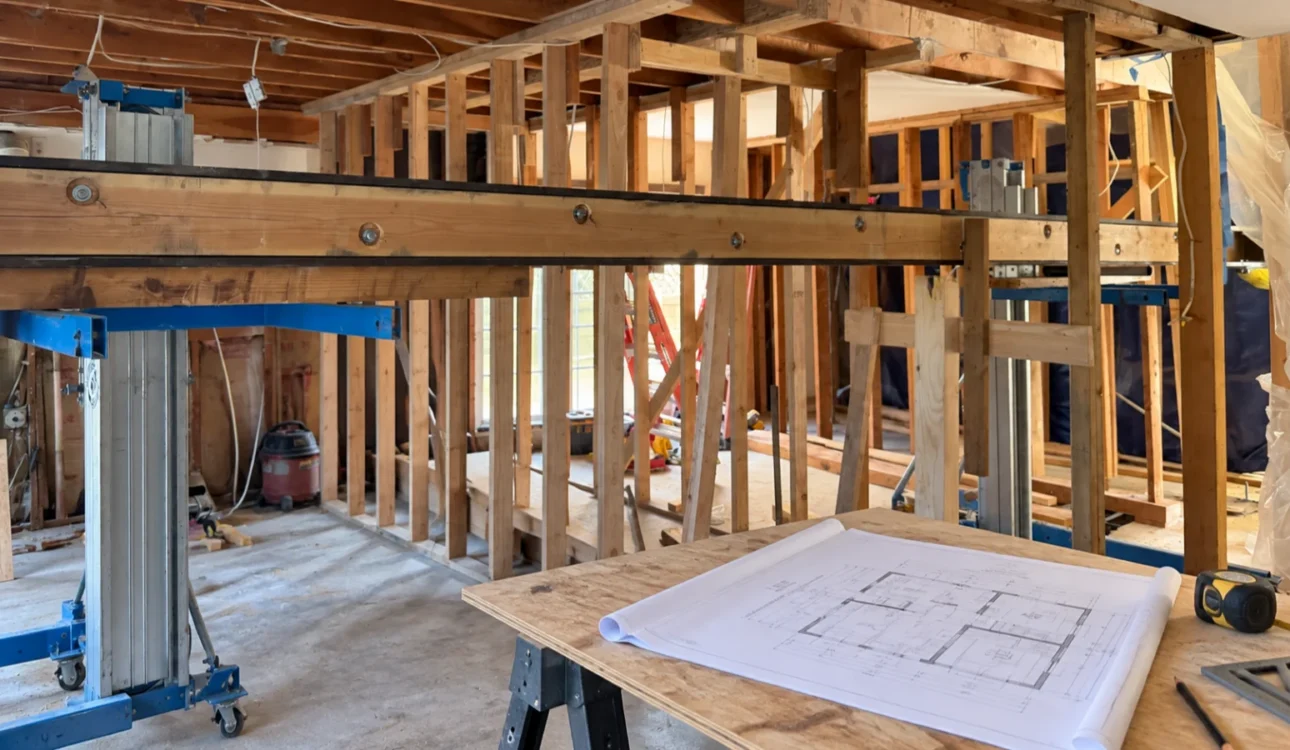

Not every remodel needs structural plans.
Replacing finishes, cabinetry or flooring is very different from removing walls, enlarging openings, changing roof framing or expanding the building.
The practical question is whether the proposed remodel changes how the house carries loads or alters structural framing. If it does, structural evaluation, calculations or drawings may become part of the project.
Requirements still depend on the actual property, scope and local building department.
What Are Structural Plans?
Structural plans describe the parts of the building that support and transfer loads.
Depending on the project, they may address:
- beams, posts and headers;
- bearing walls;
- floor, ceiling and roof framing;
- foundations and footings;
- structural connections;
- framing around enlarged openings;
- connections between an addition and the existing house.
Architectural drawings and structural plans are related but solve different problems.
Architectural drawings generally describe the layout, dimensions, doors, windows and design intent. Structural drawings and calculations address how affected parts of the building will be supported.
A project may require architectural information, structural information, both or neither depending on the work.
Remodels That Are More Likely to Need Structural Review
Structural review becomes more likely when the remodel changes the existing load path or framing.
Removing or Modifying a Wall
Opening a kitchen to a living or dining area is one of the most common examples.
Before a wall is removed, the project team needs to determine whether it supports framing above it and, if so, how those loads will be carried after the wall changes.
The solution may involve a beam, posts, connections or support below.
Creating a Larger Door or Window Opening
Making an opening wider can affect the framing that carries loads above it.
Large sliding doors, folding doors and widened interior openings can require changes to headers, posts or surrounding framing.
Changing Roof or Ceiling Framing
Vaulted ceilings, roof modifications, skylights and other changes can affect rafters, ceiling framing or the way loads transfer through the structure.
Building a Room Addition
An addition connects new construction to an existing building.
Foundation, wall, roof and framing decisions need to work together, and the connection between the old and new structure must be resolved before construction. See our room-addition planning guide for more on the planning sequence.
Adding a Second Story
Adding another level changes loads throughout the existing structure.
The existing walls, framing and foundation may need to be evaluated as part of the design.
When Structural Plans May Not Be Necessary
A remodel limited to nonstructural finishes may not require structural engineering.
Examples can include:
- replacing cabinets without changing walls;
- installing countertops;
- replacing flooring;
- painting;
- replacing finishes.
That does not automatically mean the project needs no permit.
Electrical, plumbing, mechanical or other work may have separate requirements.
The applicable building department determines what documentation must accompany the actual scope.
A Useful Orange County Example
Orange County does not have one building department governing every remodeling project.
Properties inside incorporated cities are generally reviewed by their city, while unincorporated areas follow county processes.
That is why requirements should be checked against the property address and scope rather than assumed from another project.
For example, the City of Irvine’s published minor residential remodel checklist for qualifying single-family detached or duplex projects excludes structural or framing modifications such as removing walls or creating or changing openings.
Once structural work is introduced, the project can move beyond that simplified remodel path.
The exact requirements still need to be confirmed for the specific jurisdiction and project.
Structural Decisions Should Happen During Layout Planning
The best time to identify structural questions is usually before the layout is finalized.
Consider whether the design changes:
- walls or openings;
- roof or ceiling framing;
- stairs;
- exterior windows or doors;
- the building footprint;
- connections between existing and new construction.
Resolving those issues early helps the architectural design, structural work, utilities and construction scope develop around the same plan.
It can also prevent a layout from being developed around assumptions that later prove impractical.
A 3D Design Is Not a Structural Plan
3D planning can help homeowners evaluate layout, cabinetry, proportions, finishes and how rooms connect visually.
It does not replace structural calculations, engineering or construction documents where those are required.
Bud Remodeling uses 3D planning to help homeowners review design decisions before construction, while the documentation needed for permits and structural work is determined separately from the actual scope.
Structural Plans Affect More Than Framing
Structural decisions often affect other parts of a remodel.
A new beam may affect:
- ceiling elevations;
- lighting locations;
- ductwork;
- plumbing routes;
- electrical work;
- cabinetry;
- finishes;
- construction sequencing.
A post location can also affect circulation, cabinetry or the intended open layout.
That is why structural planning should be coordinated with the remodel rather than treated as an isolated drawing exercise.
What Should Be Defined Before Structural Work Is Designed?
Before detailed structural documents are prepared, the project should be clear enough to identify what is actually changing.
Useful information includes:
- existing measurements and conditions;
- proposed walls and openings;
- the desired layout;
- additions or changes to square footage;
- roof or ceiling changes;
- known framing or foundation conditions;
- major plumbing, electrical or HVAC changes.
The clearer the scope is, the easier it becomes to identify which drawings and professional disciplines are required.
Who Determines What Plans Are Required?
The applicable building department ultimately determines what must be submitted for permit review.
Depending on the project, the package may include architectural drawings, structural calculations, structural plans, energy documents or other information.
A remodel in Irvine may follow a different administrative process from one in another Orange County city or an unincorporated area.
Homeowners should therefore avoid assuming that the plans used for another remodel will apply to their property.
Plan the Structure Before Construction
If a remodeling concept changes walls, openings, framing, foundations or the building footprint, identify those structural questions while the design can still be adjusted.
Bud Remodeling can review the property, proposed layout and construction scope during the planning process and coordinate the remodeling work around the documentation required for the project. Explore our whole-home remodeling and framing services, or contact Bud Remodeling to discuss your project.
